Double Cable Tie Wire Wrapping Machine , 1700pcs/hour Cable Winding Machine

Brand Name : CX

Model Number : CX-SA02

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1/SETS

Price : FOB SHENZHEN

Payment Terms : L/C, T/T

Supply Ability : 150/SET PER MONTH

Delivery Time : 10-15 working days

Packaging Details : woodencase

Total Winding Length : 60-120mm

Normal Head Length : 30-150mm

Winding Speed : 1300-1700pcs/hour

Voltage : AC220V/50Hz

Pressure Of Air Source : 0.5-0.8Mpa

Dimension : 1100mm*660mm*1550mm

Contact Now

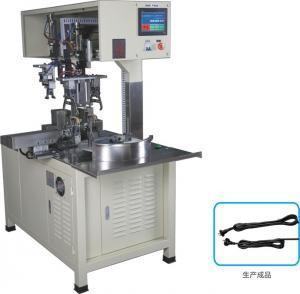

"8" Form Double Cable Tie Wire Wrapping Machine Cable Winding Machine Wire Winder (CX-168C)

Description

The machine can tie and twist the cable automatic. The Head Length, Tail Length, Total Winding Length can be adjusted. Easy to operate and labors are saved and improving output.

Parameter Table Of Product

Model Of Machine	cx-168C	Winding Speed	1300-1700pcs/hour
Total Winding Length	60-120mm	Length Of The Wire	Max. 4000mm
Normal Head Length	30-150mm	Normal Tail Length	30-350mm
Length Of Cable Tie	can be adjusted	Voltage	AC220V/50Hz
Number Of Turns For Tie	can be adjusted	Pressure Of Air Source	0.5-0.8Mpa
Dimension	1100mm660mm1550mm	Weight	235KGS

.Safety

.Easy Operation And High Efficiency.
