2T Automatic Wire Tinning Machine

Name: 2T Automatic Wire Tinning Machine
Brand: CHENXIN
Price: 1 USD

Wholesale 2T Automatic Wire Tinning Machine from china suppliers

Brand Name : CHENXIN

Model Number : CX-02HR-C

Certification : ISO90001

Place of Origin : CHINA

MOQ : 1/Set

Price : Fob Shenzhen

Payment Terms : T/T

Supply Ability : 150 sets per month

Delivery Time : 10-15 working days

Packaging Details : wooden case

Cutting length : 15-9,999mm

Adaptable wire : standard model: AWG#32-AWG#18 (2 wheels feeding wire) Customized model: AWG#14-AWG#18 (4 wheels feeding wire)

adaptable terminal : 0.8-3.96mm horizontal, straight mold is changeable, adapt to flag figure mold(partially closed continuous plug-in terminals and single-grain terminals can be customized)

Capacity : 1,600pcs-1,800pcs/hr (with function twisting, tinning, waterproof asssembly) 2,500pcs-2,800pcs/hr(turn off function twisting, tinning, waterproof asssembly)

Stripping Length : A side 0-6mm; B side 0-20mm

Cutting accuracy : ±(0.2%*L+1)mm

Air Pressure : 0.5-0.7Mpa(5-7kg/m³)

Twisting length : 3-20mm(according to the OD of wire)

Tinning Length : 1-20mm

Contact Now

CX-02HR-C Full Automatic Cable Wire Cutting Stripping Tinning Waterproof Assembly Machine

Equipment Function:

Name of the machine	CX-02HR-C Full Automatic Cable Wire Cutting Stripping Tinning Waterproof Assembly Machine
Function	A side cutting, stripping, waterproof assembly; B side stripping, twisting, tinning
Control Method	HMI+Microcomputer
Take-up system	computer automatic pre-feeding device, suitable for coiled wire +reel wire
Detection Device	With terminal or not, No wires alarm, air pressure detection
Terminal pressure detection system	Optional installation (applicable for domestic and imported systems)
Defective product handling	Sorting(can be equipped with cutting device)
Crimping force	2T Super mute terminal crimping machine

Technical Parameter

Voltage	50/60Hz 220V single-phase
Cutting Length	15mm-9999mm
Applicable cable	standard model: AWG#32-AWG#18 (2 wheels feeding wire) Customized model: AWG#14-AWG#18 (4 wheels feeding wire)
Applicable terminal	0.8-3.96mm horizontal, straight mold is changeable, adapt to flag figure mold(partially closed continuous plug-in terminals and single-grain terminals can be customized)
Capacity	1,600pcs-1,800pcs/hr (with function twisting, tinning, waterproof assembly) 2,500pcs-2,800pcs/hr(turn off function twisting, tinning, waterproof assembly)
Stripping Length	A side 0-6mm; B side 0-20mm
Twisting length	3-20mm(according to the OD of wire)
Tinning Length	1-20mm
Cutting accuracy	±(0.2%*L+1)mm
Air Pressure	0.5-0.7Mpa(5-7kg/m³)
Dimension	1,210mm770mm1,370mm; take-up: 920mm560mm1,300mm
Weight	about 450kg±15kg; take-up: 80kg

Device Configuration

Motor	6 sets of Japan Mitsubishi servo motors + 4 sets step motors
Pneumatic Components	9 sets of SMC electromagnetic valve + 9 sets of SMC Cylinder
Screw	11 sets of Taiwan Hiwin
Sensor	Japanese Panasonic
Belt	American Gates Brand
Bearing	Japnese NSK
Blades	t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable

2T Automatic Wire Tinning Machine

Product Tags:

2T Automatic Wire Tinning Machine

0.7Mpa automatic wire tinning machine

OEM crimping twisting tin machine

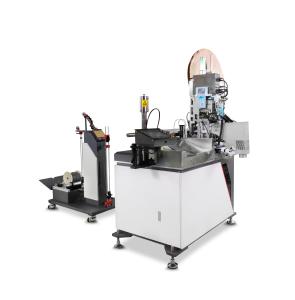

2T Automatic Wire Tinning Machine Images
